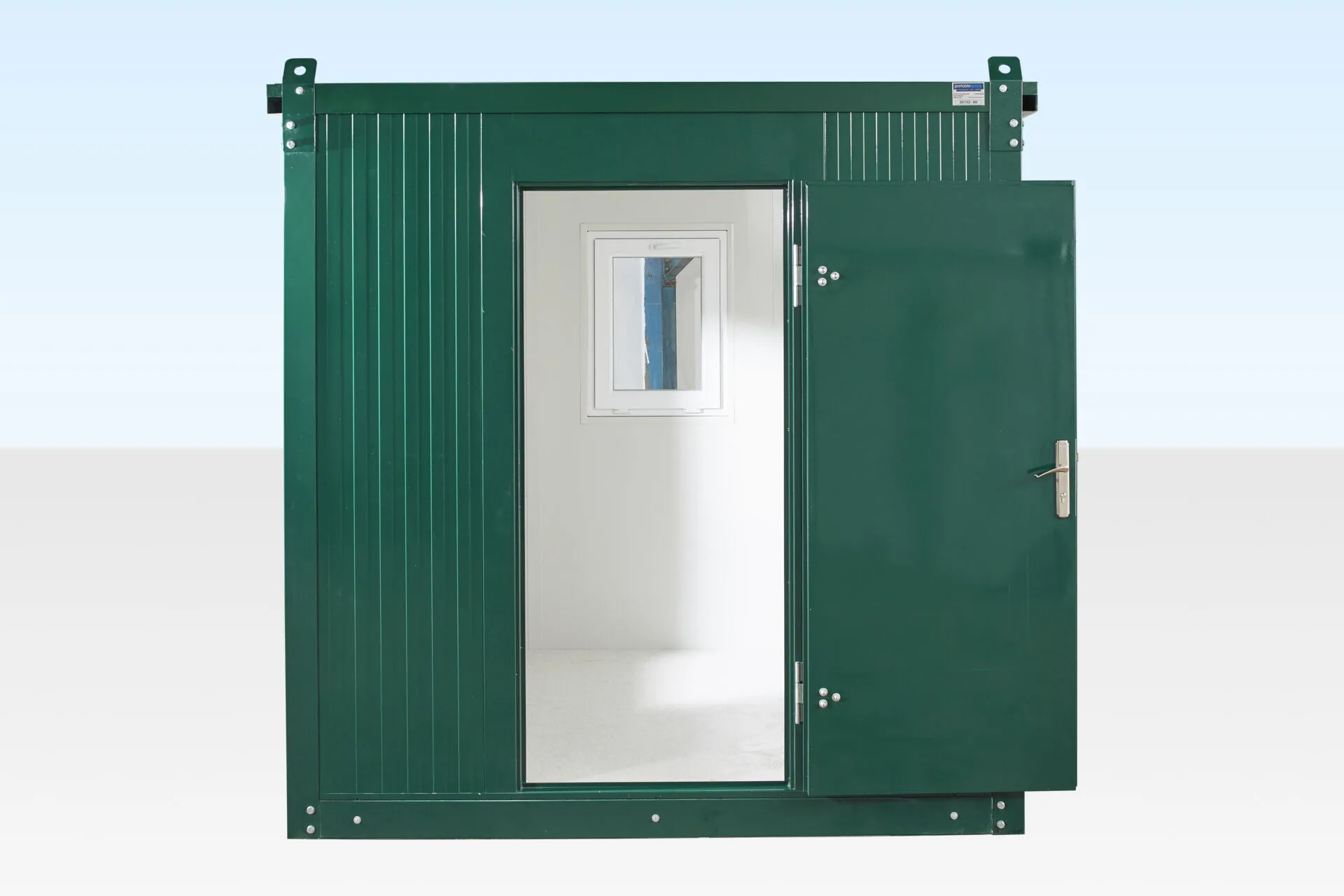

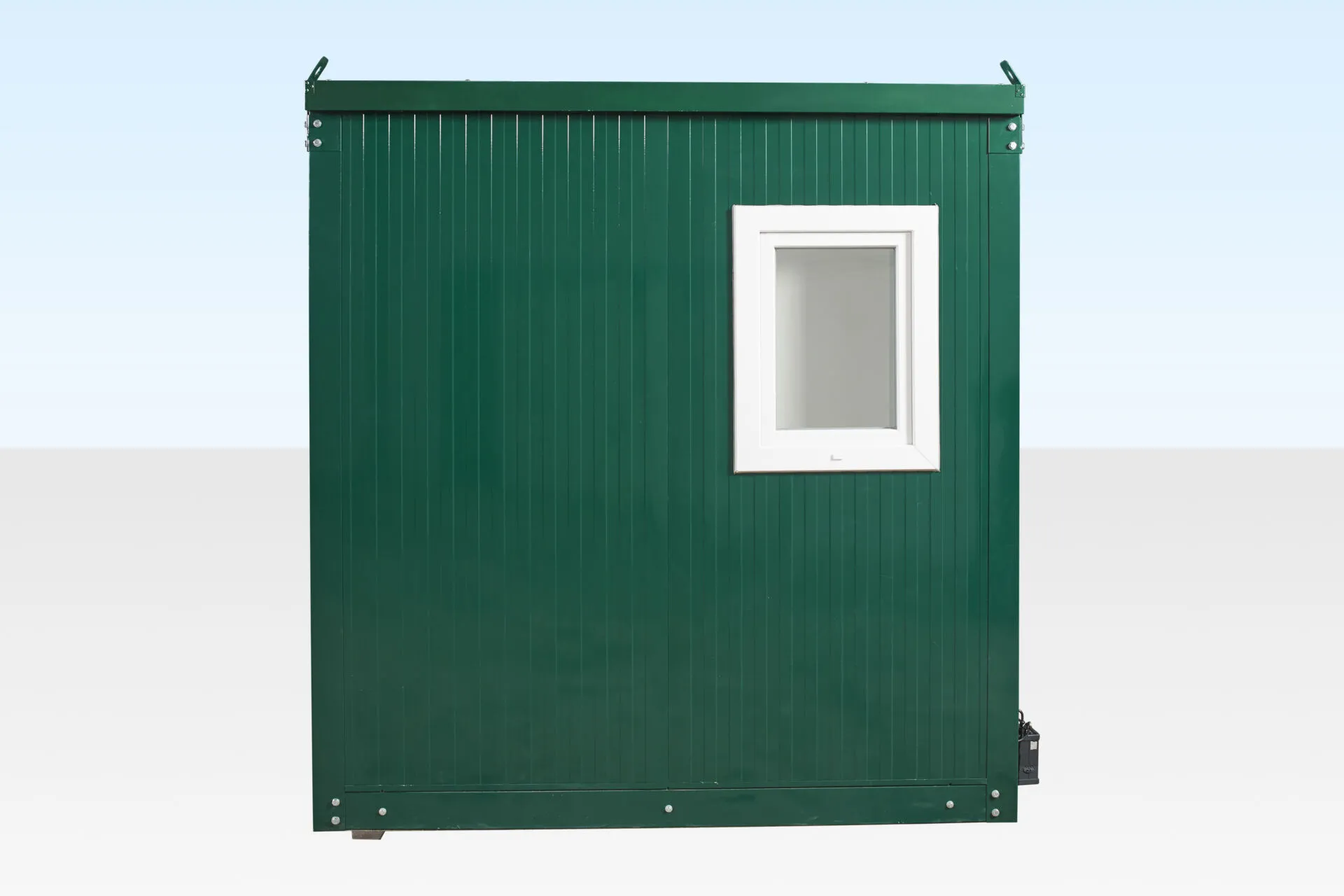

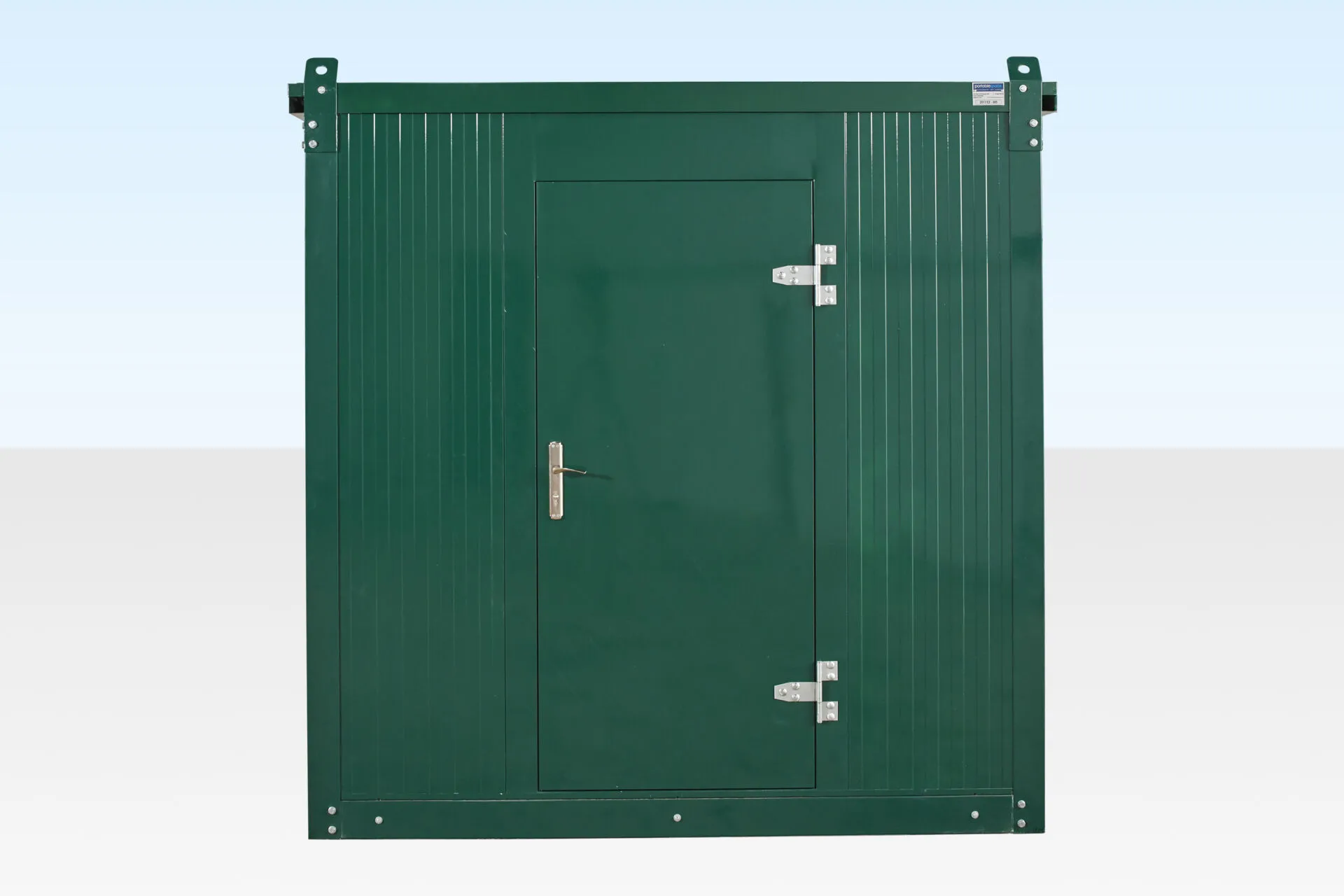

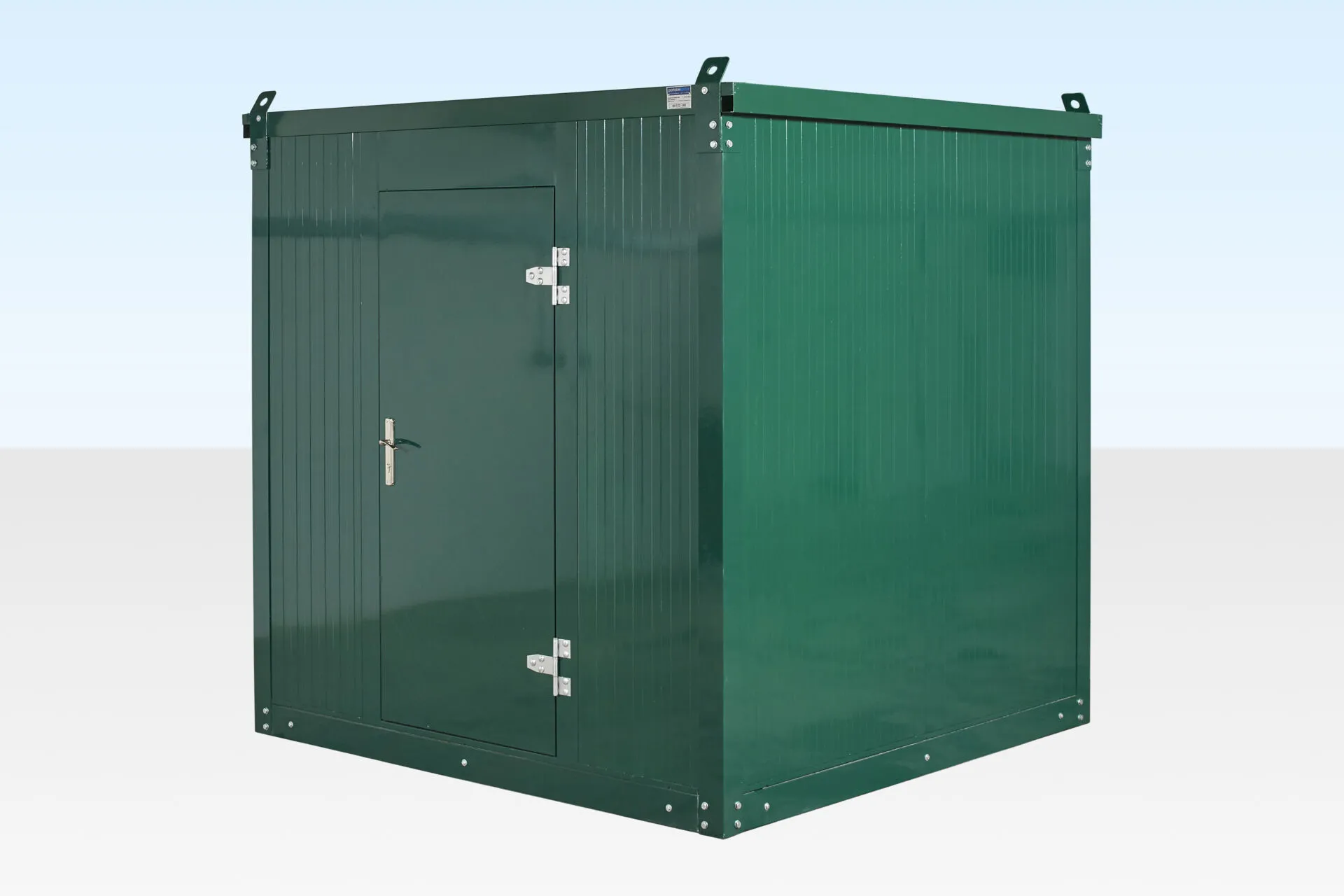

6 ft 7 in Flat Pack Office Cabin – Compact & Collapsible Modular Office
The 6 ft 7 in Flat Pack Office Cabin is the smallest unit in our collapsible flat pack range, perfect for sites with restricted access. Designed for ease of transport and installation, this man-portable cabin arrives flat packed and can be quickly assembled using a socket set in approximately 45 minutes. Its compact size allows deployment in areas where traditional office buildings cannot be installed.
Features
-
Fully galvanized steel construction – rust-resistant
-
Powder coated moss green exterior and off-white interior
-
Guttered roof for effective water management
-
Two double glazed u-PVC windows for natural light
-
Man-portable and easy to assemble
-
Can be linked side by side or end to end for additional space
Benefits
-
Quick, simple assembly with no specialist tools
-
Lightweight yet durable steel structure
-
Pleasant, bright interior suitable for surface-mounted electrics
-
Expandable layout to meet growing site requirements
-
Ideal for temporary offices, remote sites, and restricted access areas
Typical Uses
-
Construction site offices
-
Temporary administrative offices
-
Remote project management posts
-
Small-scale site accommodation
PRODUCT SPECIFICATIONS
| External Length | 7 ft 5 in |
|---|---|
| External Width | 7 ft 7 in |
| External Height | 7 ft 9 in |
| Internal Length | 7 ft |
| Internal Width | 7 ft 2 in |
| Internal Height | 7 ft 1 in |
| Door Width | 2 ft 7 in |
| Door Height | 6 ft 6 in |
| Height (Flatpacked) | 17.7 in |
| Length (Flatpacked) | 7 ft 5 in |
| Width (Flatpacked) | 7 ft 7 in |
| No. of Windows | 2 |
| Weight (Flatpacked) | 1,466 lbs |
| Weight Heaviest Part (when Demounted) | 163 lbs |
| Floor Type | 0.71 in Marine Plywood |
| Floor Loading | 551 lbs/m2 evenly distributed |
| Internal Floor Covering | 0.08 in PVC Linoleum (flash point B1 difficult to burn, smoke density Q1) |
| Internal Wall Covering | 0.02 in galvanized steel electrostatic powder coated in RAL9002 |
| Insulation | 2 in EPS insulation |
| Electrical Requirements. (Amps) | 32amp |
